₵2,232.24 – ₵3,633.60
Motherboard Features:
★CPU: Intel® Processor N100 3.4GHz/Core i3-N305 3.8GHz TDP 15W★Memory: 1*SODIMM DDR4 3200MHz★I/O Port: 7*USB,1*LVDS/EDP，2*HDMI,2*LAN,1*AUDIO.★COM Port: 4*RS-232,2*RS-232/422/485(COM2/3)★Watchdog timer:Programmable 256 levels timer interval, setup by software★Storage: 1*SATA space; 1*MSATA★Expansion:1*m.2 2230 WIFI★Power Input:DC_IN 12V★Motherboard Dimensions:148*102mm

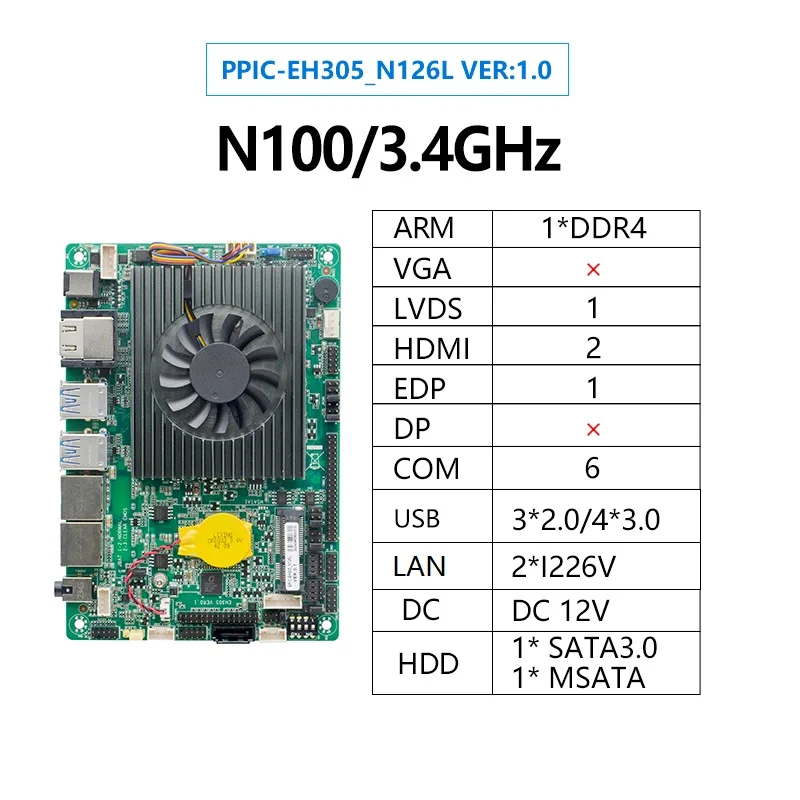

PPIC-EH305_N126L 3.5’SBC Specification
Model No.
PPIC-EH305_N126L
Processor System
Intel® Processor N100 CPU 3.4GHz，TDP 6W
Intel® Core i3-N305 CPU 3.8GHz，TDP 15W
Chipset
Intel SOC
Memory
1*SODIMM DDR4 3200MHZ
BIOS
64Mb Flash ROM
Display
Intel UHD Graphics
2*HDMI,1*LVDS/EDP（Only one of them can be used）
Serial Port
6*COM (RS-232 x 4, RS-232/422/485 x 2)
USB Port
3*USB2.0，4*USB 3.0
Ethernet
2*intel i226V 10/100/1000 Mbps Ethernet Controller,Support WOL/PXE
Audio
ALC897 7.1+2, Line–out
Expansion
1*M.2 2230 WIFI
Storage
1*SATA3.0, 1*MSATA
GPIO
4bit GPIO
Watchdog Timer
Programmable 256 levels timer interval, Output System reset
Power
DC-IN 12V Support ACPI
OS
Windows10/Windows 11/Linux
Operational Temperature
-10 ~ 60° C
Non-Operational Temperature
-20 ~ 70° C
Operational Humidity
5~ 95% (non-condensing)
Non-Operational Humidity

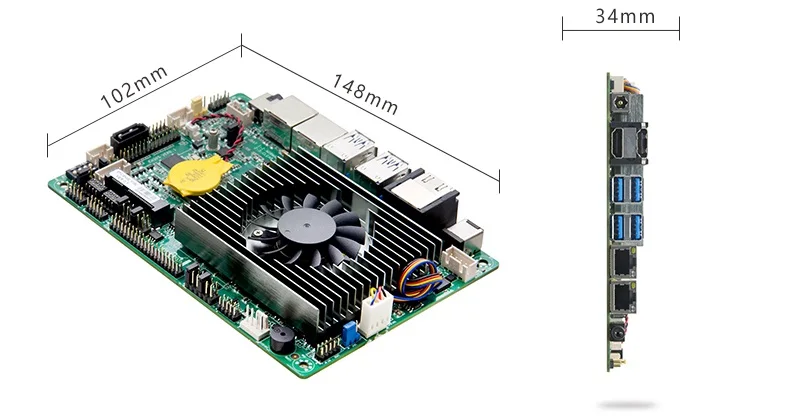

Dimensions (L x W)
148 x 102 mm , same as 3.5"
Order Information :
No
Model
CPU
Frequency
HDMI
LVDS/EDP
LAN
USB
COM
RS485/422
1
PPIC-EH305
i3-N305
3.8GHZ
1* SODDR4
2
1（1）
2*226V
7
6
COM2/3
DC12V
PPIC-EH100
N100
3.4G
